Milliken E177

Contents

Overview

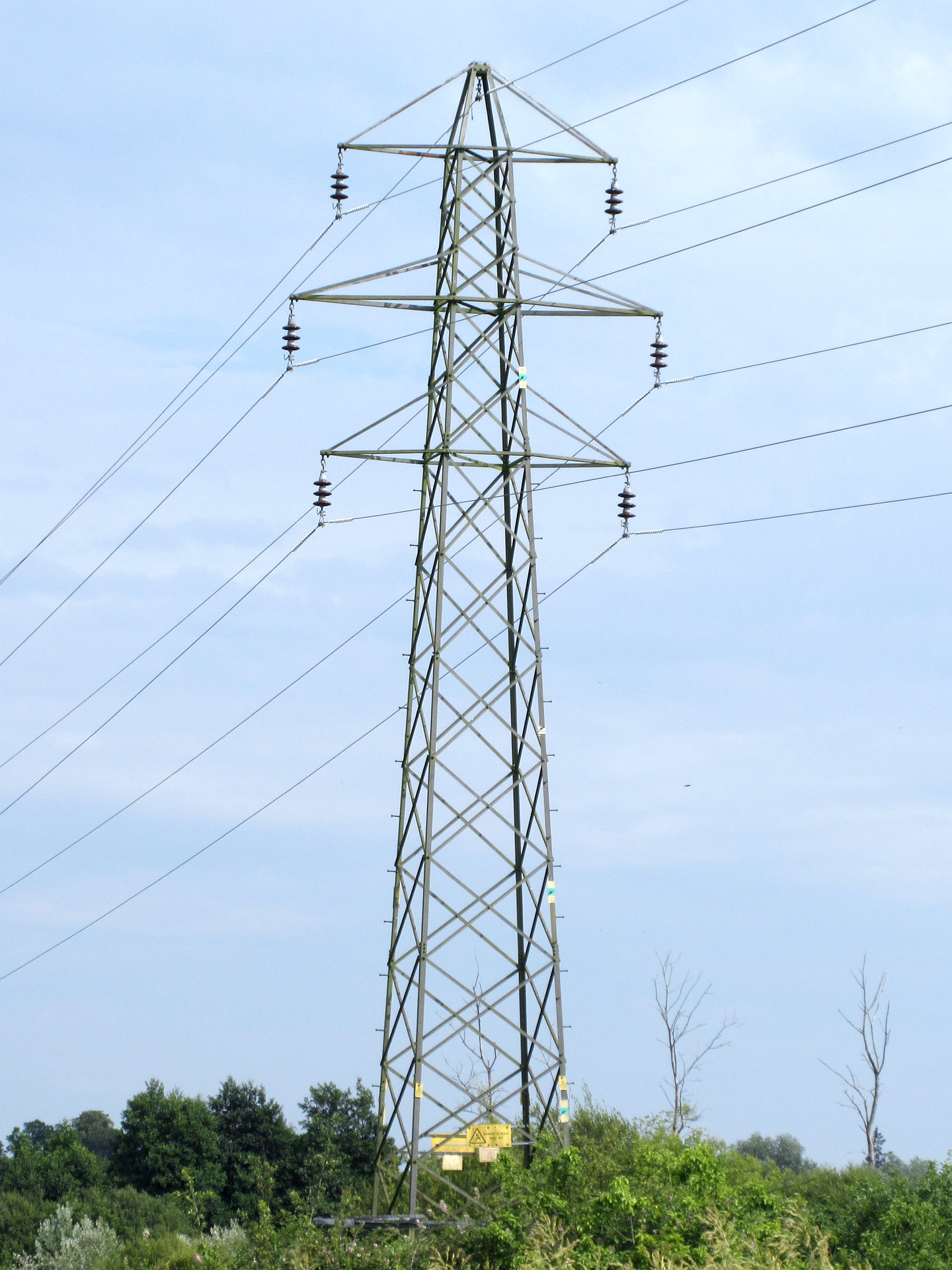

E177 is a 33 kV distribution tower type, used on scheme SWE SL2 and apparently (not verified) also SWE SL3. E177 is notable for including quad-circuit towers: these have four crossarms in long–short pairs. The upper two crossarms carried the double-circuit line from Nursling to Southampton while the lower two crossarms carried the double-circuit line from Nursling to Winchester. The quad-circuit line split out into separate double-circuit lines on a junction tower in Romsey. Today, the quad-circuit towers carry only two circuits instead of four.

One curious characteristic of E177 is that neither the double-circuit nor quad-circuit line towers have a bend line. The corners of the tower are a continuous straight line from the base of the peak to the ground. (This is called a narrow base tower.)

The D10° tower is a suspension tower, which is very unusual in the UK and a long-abandoned practice. The only known D10° towers—those visible on Google Street View—are all in straight line positions and appear to have been chosen for supporting long spans.

General data

Design contractor Milliken Brothers
Height (straight line tower) 62′–11″ (double circuit)
74′–0″ (quad circuit)
Voltage 33 kV
Dates back to 1932–33 (drawings)
Known conductors Single
Design conductor ?
Circuit count Double, quad

Tower forms

The following diagrams are shown to scale at 12 pixels per metre:

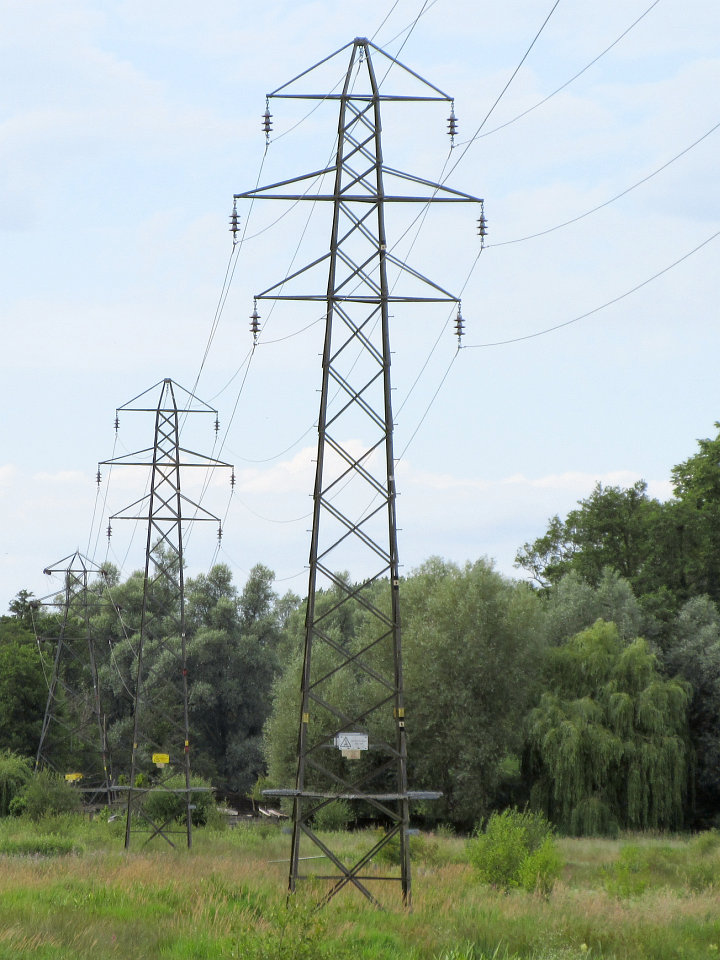

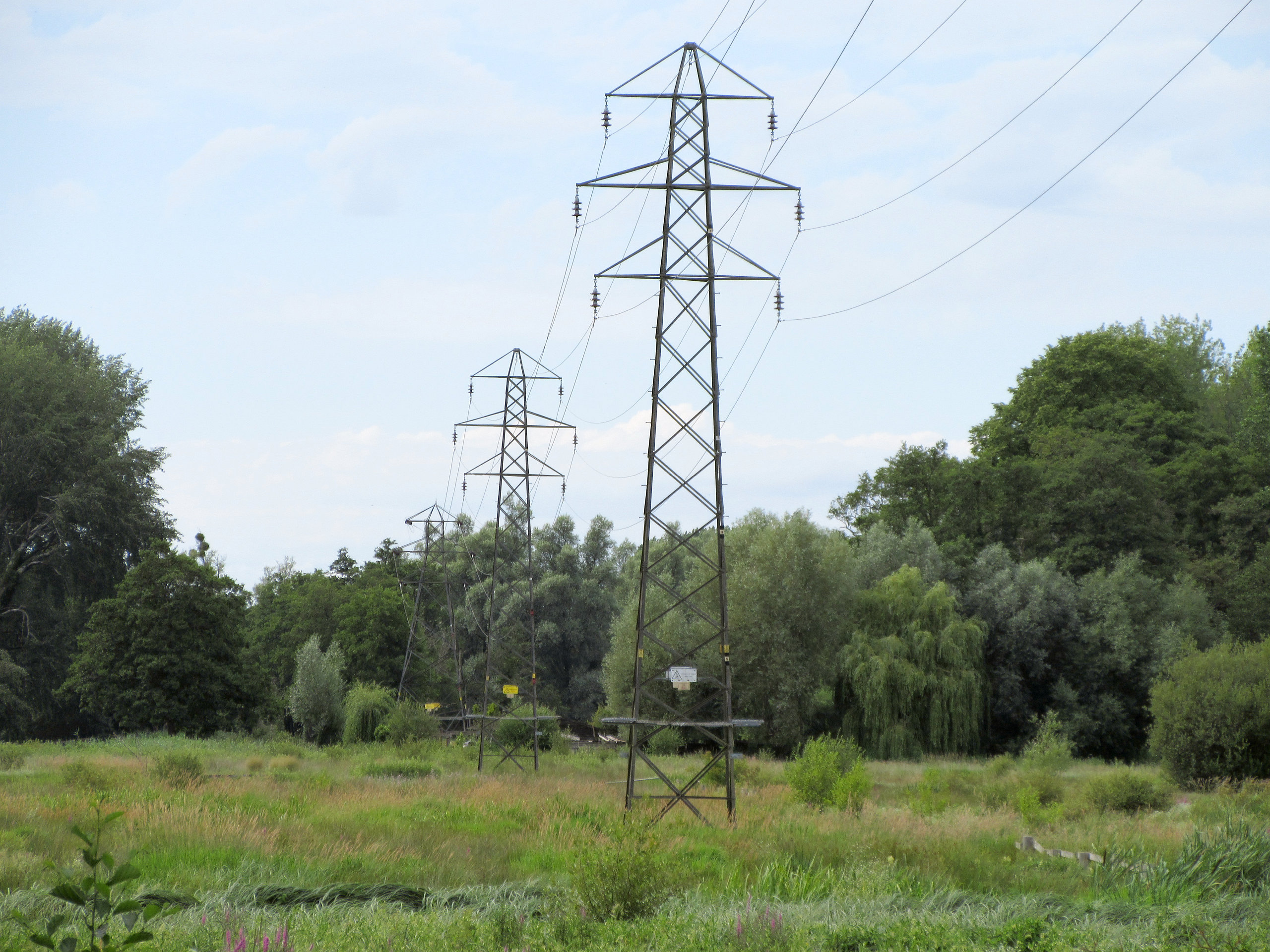

Milliken E177 D3
Milliken E177 D10
Milliken E177 D30
Milliken E177 D30 (GPO crossing)
Milliken E177 D60
Milliken E177 D60 (GPO crossing)
Milliken E177 DT

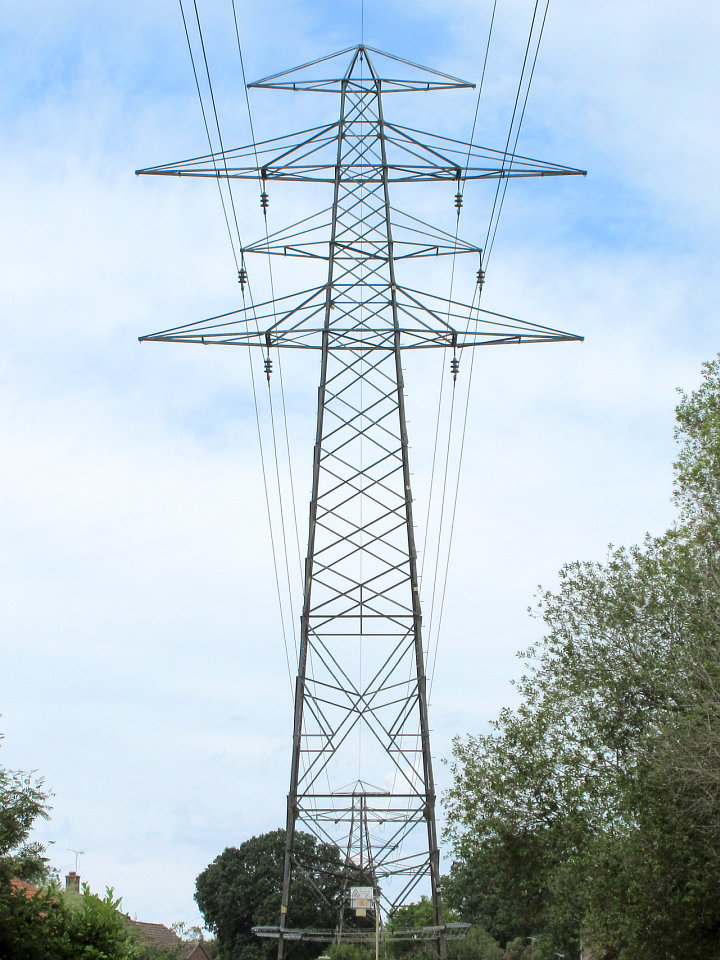

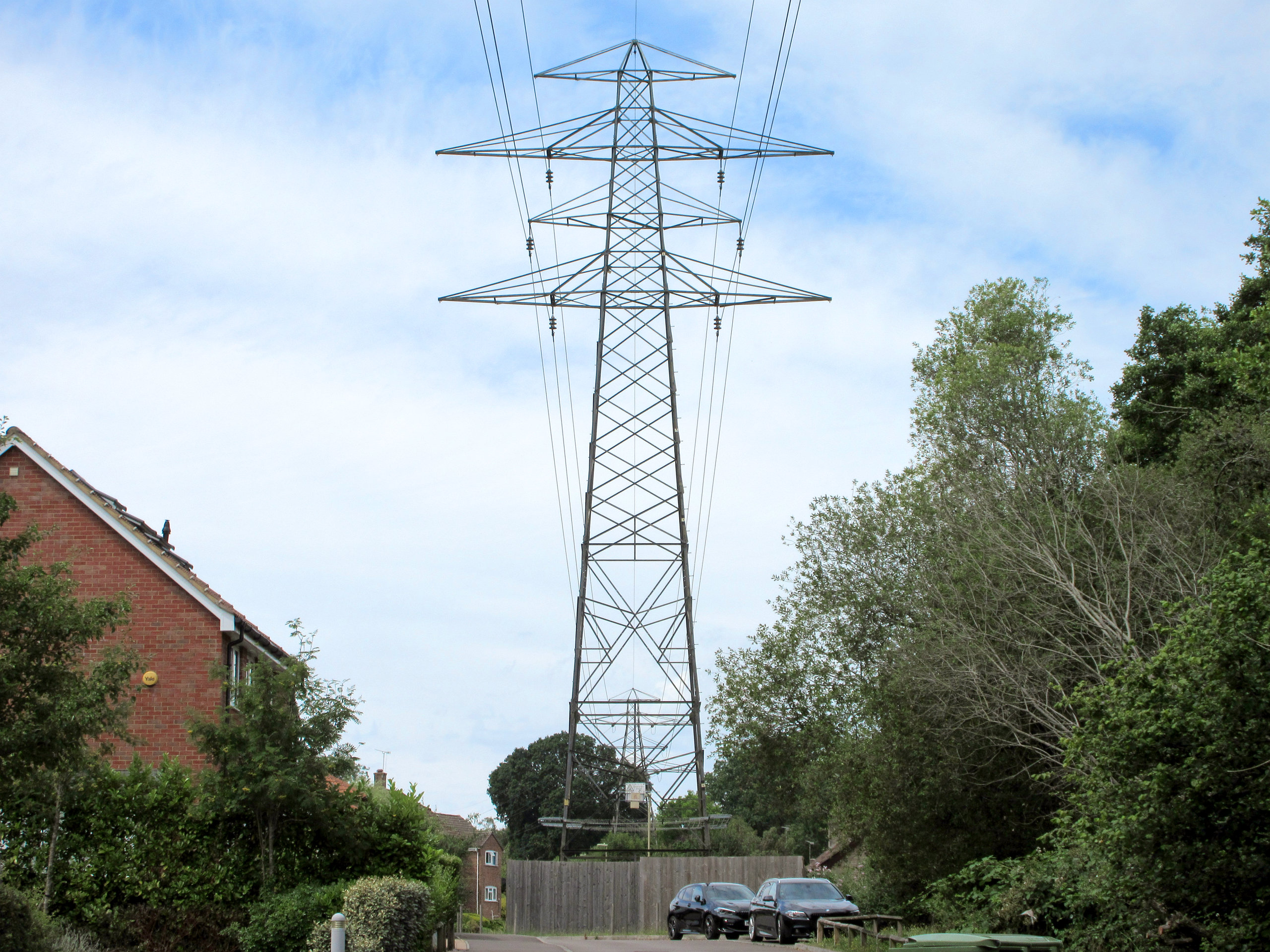

Milliken E177 F3
Milliken E177 F72

The designation of F3 is an assumption that the F four-circuit line tower permits 3° deviation the same as the double-circuit line tower.

The outline and dimensions for the (undesignated) F3 tower are given in [Marshall]. Google Street View was used to correct the diagram.

The F72 diagram is taken from the orientation and line diagram (XM911-78A) for the junction tower where the quad-circuit line from Nursling divided at Romsey into conventional double-circuit lines to Salisbury and Winchester. This junction tower uses the F72 E20 body with the outer-angle, square-ended F72 crossarms on both sides. Very little of the tower is depicted, so the inner-angle crossarms and the body bracing were derived from Street View from the heavy angle towers in Southampton, which all appear to be F72. (The angle towers at Romsey are similar but designed for a smaller angle.)

GPO crossing” towers carry cradle guards suspended between the extended middle crossarms and the extra fourth crossarms; these offer enhanced protection for General Post Office (GPO) telecommunication lines against fallen conductors. Two D60 GPO crossing towers straddle Braishfield Road in Romsey and the diagram for this type is derived entirely from Google Street View as the schematic has not been recovered. Earthing arms were used for road crossings:

D3 with earthing arms
D10 with earthing arms
D30 with earthing arms
D60 with earthing arms

Examples

Out of range.

Tower details

The height and clearances are obliterated from the D10 general arrangement drawing; they are instead taken from the earthing arms drawing covering D3 and D10. The tower height is thus an estimate only, as is the spacing between the peak and top crossarm. Base width is at ground level or top of stubs according to each drawing: they are not consistent.

Type Source Height Base width Crossarm width
D3 BK35/50346 62′–11″ 8′–6″ 17′–0″
D10 XM911-35, XM911-65 ca. 64′–2″ 13′–0″ 20′–0″
D30 XM911-39 58′–9″ 19′–0″ 17′–9″
D30 (GPO crossing) XM911-39, XM911-60B 28′–0″
D60 BK35/50376 59′–3″ 20′–0″ 19′–3″
D60 (GPO crossing) Google Street View ?
DT BK35/50376 17′–6″
F3 [Marshall], Google Street View 74′–0″ 13′–0″ 42′–6″
F72 XM911-78A, Google Street View 68′–9″ 20′–0″ ca. 48′–3″
