Railway electrification (UK)

Headspan OLE, Welham Green Station, East Coast Main Line:

View full-size image Night time …
View full-size image Daytime … (start of crossover between cable runs)

Headspan was a low-cost OLE type introduced in the UK; while visually elegant, it is not very practical. There is also a hybrid type where the headspan wire is replaced by a portal beam. Headspan catenary was also used in Hong Kong. A similar system can be seen in Denmark although their version uses only portal beams instead of headspan wires; this can be seen in the Rail Engineer article Denmark's first high speed line opens.

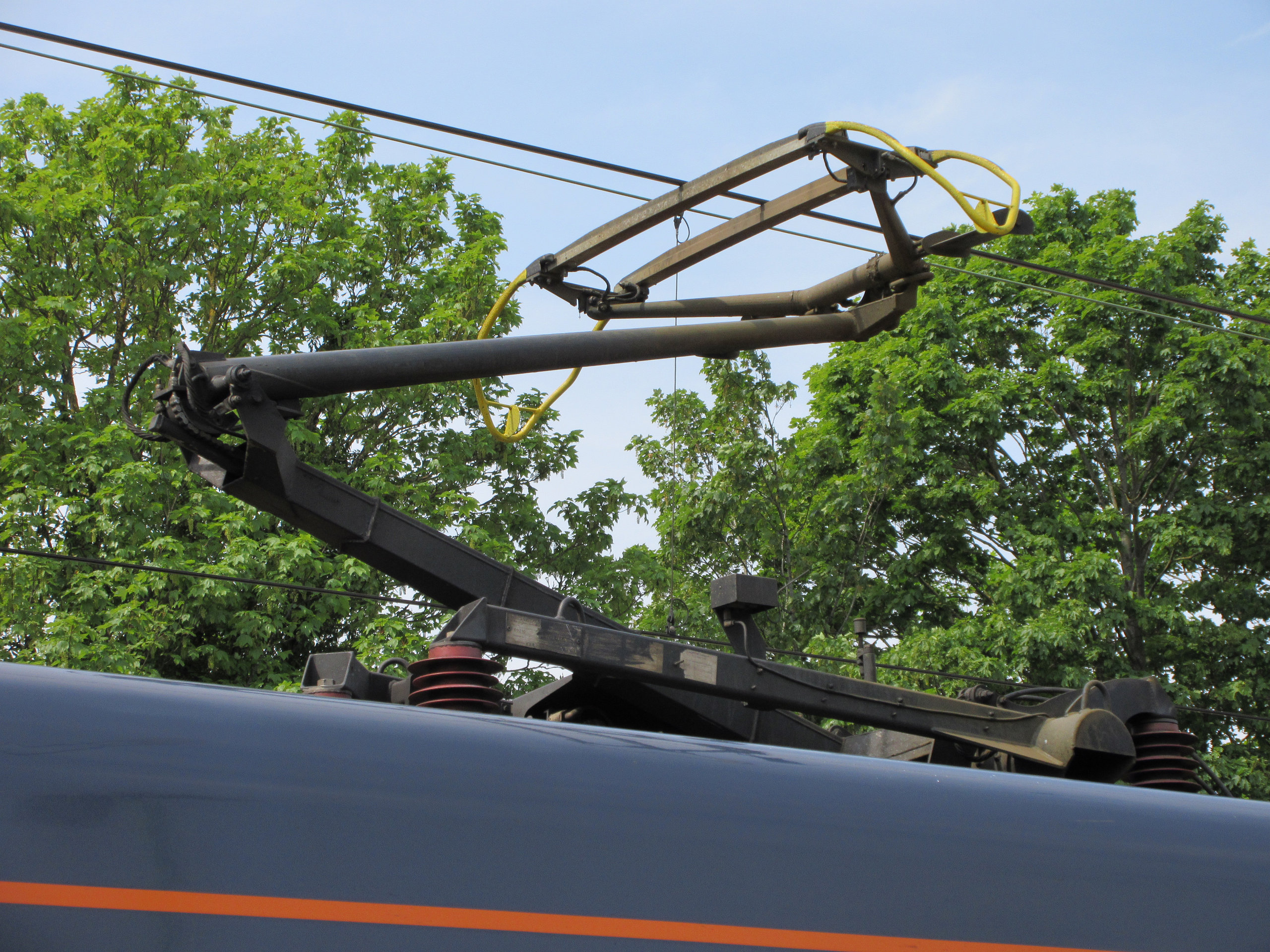

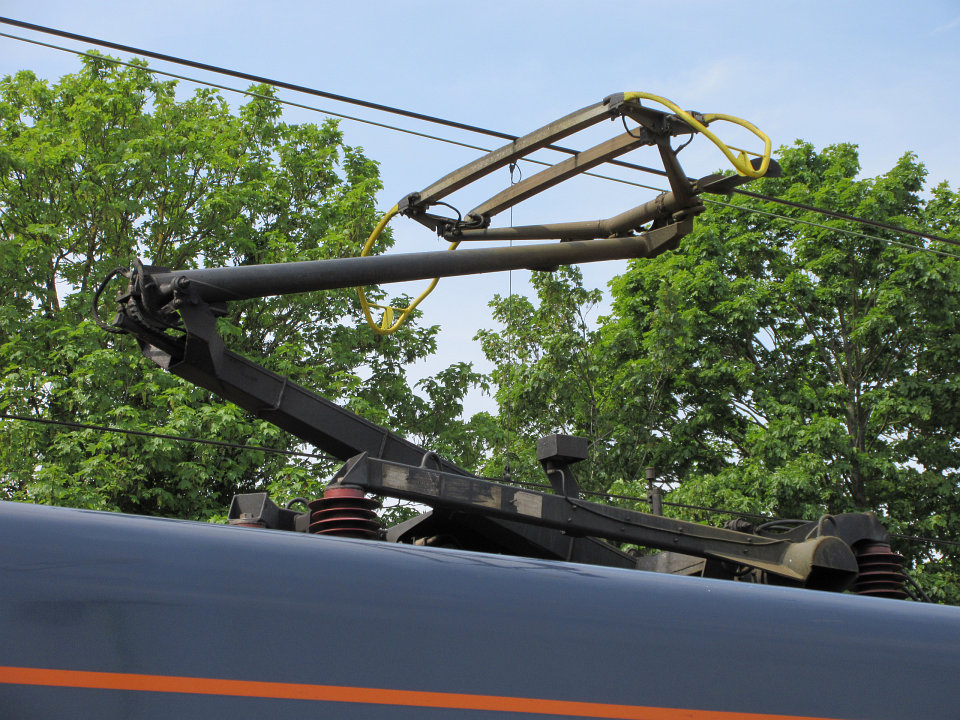

Pantographs:

View full-size image
Brecknell Willis pantograph, 377703
View full-size image
Brecknell Willis pantograph, class 700 unit

Balance weight anchor, Stevenage station:

View full-size image
Balance weight anchor cantilever mast, Stevenage station
View full-size image
Balance weight assembly detail
View full-size image
Balance weight
View full-size image
Pulley detail
