Overview

Blaw Knox K9906 is a 66 kV distribution tower type. The Blaw Knox K9906 drawings were used for scheme SWE SL11; the D30 at least was used on an SL4 scheme. The details of these schemes are not known. K9906 is depicted in [NSP/004/030] where it is listed as a “Knursling” type (intended to read Nursling, now a suburb of Southampton). The “Knursling” type has “Typical Tower Types in the family” “D3(s)”, D30, D60, DT and DTV. Northern Powergrid give the standard conductors as 100, 150 or 175 mm² ACSR with 60 or 70 mm² ACSR earthwire. The meaning of “s” in “D3(s)” is not known.

In addition to the Nursling area, the same towers can also be found in Gloucestershire. Whether both types share the K9906 designation is not presently known.

General data

Design contractor Blaw Knox
Height (straight line tower) 65′–0″ (19.8 m)
Voltage 66 kV
Dates back to 1947 (drawings)
Conductors Single
Design conductor ?
Design earthwire ?

Can be confused with

Lines

Lines discovered to date:

Both lines have been de-rated to 33 kV. The line at Lydney retains its 66 kV insulators except for the downleads on the terminal tower.

Tower forms

The following diagrams are shown to scale at 12 pixels per metre:

K9906 D3
K9906 D10
K9906 D30
K9906 D60
K9906 D90
K9906 DT
K9906 DT (sealing end termination)
K9906 DT (11′ auxiliary crossarms)
K9906 DTV

The GA&ED drawings for the terminal (DT) tower with sealing end termination omits the actual cable sealing ends, so these have been loosely approximated based on similar towers from other series.

Examples

View full-size image
K9906 D3
View full-size image
K9906 D10 (presumed)
View full-size image

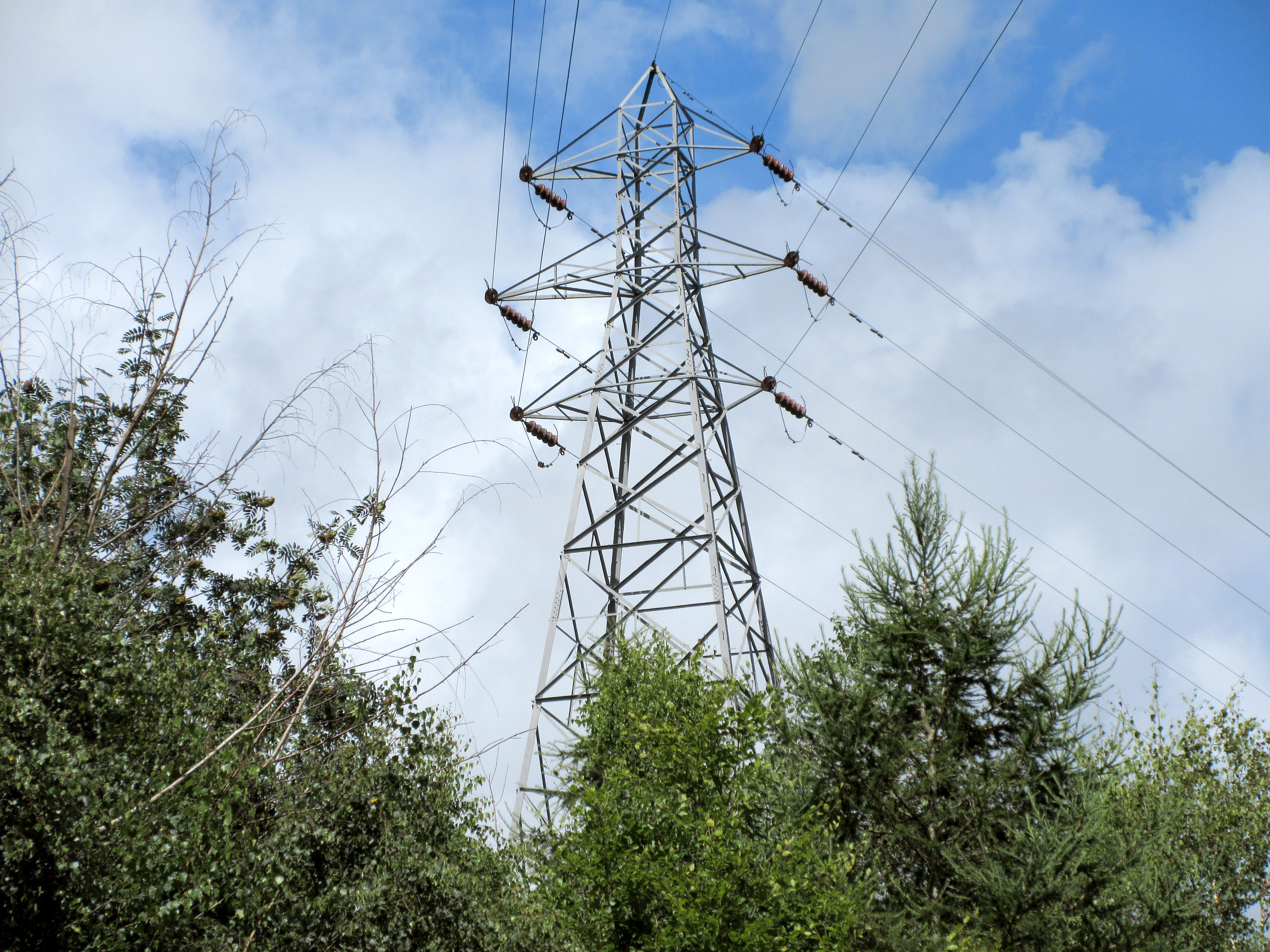

K9906 D60
View full-size image
K9906 terminal tower with sealing end platform

The D10 tower is assumed to be such from the approximately 10–11° angle it carries; D10 and D30 are almost identical. All examples are in the Lydney woodland and were photoghraphed during pylon hunt 30, 6th July 2024.

Tower details

Total width is the width between the outer phase conductor attachment points (the conventional measurement on towers). The steelwork projects a little further beyond these points.

Type Source Height Base width Total width
D3 XM.2049-11 65′–0″ (19.8 m) 10′–5″ (3.2 m) 19′–0″ (5.8 m)
D10 XM.2049-12 64′–0″ (19.5 m) 13′–5″ (4.1 m) 18′–0″ (5.5 m)
D30 XM.2049-13 64′–0″ (19.5 m) 15′–0″ (4.6 m) 19′–2″ (5.8 m)
D60 XM.2049-14 64′–0″ (19.5 m) 18′–5″ (5.6 m) 21′–0″ (6.4 m)
D90 XM.2049-18 64′–0″ (19.5 m) 21′–6″ (6.6 m) 24′–6″ (7.5 m)
DT XM.2049-14 64′–0″ (19.5 m) 18′–5″ (5.6 m) 19′–0″ (5.8 m)
DTV XM.2049-14 64′–0″ (19.5 m) 18′–5″ (5.6 m) 40′–0″ (12.2 m)
Vertical phase clearances
Tower type Peak to top crossarm Top to middle crossarm Middle to bottom crossarm Bottom crossarm to ground
Line tower 3′–6″ 8′–6″ 8′–6″ 44′–6″
Tension towers 7′–0″ 8′–6″ 8′–6″ 40′–0″
Line entry limits
Type Limits
K9906 DT Entry angle 0–5°
K9906 DTV Entry angle 0–5°
